Home>Magnetic Drilling Machines>Magnetic Drilling Machines 8823 Maximum drilling diameter 23mm 1500W
EURO 200.00
Free Shipping
Sold Out
Adding to cart succeed

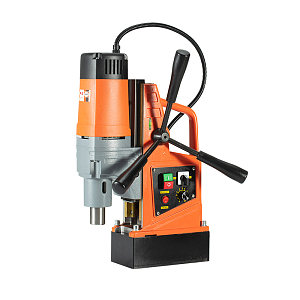

Magnetic Drilling Machines 8823 Maximum drilling diameter 23mm 1500W
color:red,size:xxl
Subtotal: EURO 0
View My Cart
- This 1500W heavy-duty mag drill bores at 0-450 RPM stepless speed up to a maximum 23mm across. Powerful motor, the magnetic drill press drills through industry quality steel with ease.
- Dustproof air inlet, and exhaust air holes are designed for cooling the magnetic drill press during overheating.
- Travel distance: 320mm. Both side of the mag drill can be installed with 3 extended crank handles for adding your convenience. This ergonomic design handle provides comfortable grip in operation and transport. Double Dovetail Guide Rail: The double dovetail guide rail can adjust the height of the motor to get a max.
- The powerful two-stage magnet can generate 13,500 N of holding force, ensuring the drill press machine will not move in the work. Thanks to its Electromagnet base, our magnetic drill press anchor itself securely during use through its solid iron bottom.
- Various Applications: This versatile magnetic drill press is immensely suitable for industrial and steel fabrication, ship or bridge building, railway manufacture, wind power generation, power-plant construction, home improvement, equipment installation, and a wide swath of other fields.
-
- Product Name: Magnetic Drilling Machines 8823 Maximum drilling diameter 23mm 1500W
- Item NO.: M_8823
- Weight: 22 kg = 48.5017 lb = 776.0272 oz
- Category: Magnetic Drilling Machines
- Creation Time: 2022-12-06
OverviewProduct model 8823 Maximum drilling diameter 23mm Rated voltage 110v/220v Rated frequency 50/60Hz Rated power 1500W Maximum No-load speed 450r/min Magnetic seat suction 13500N Stroke 230mm Adjustable stroke 320mm Machine net weight 22Kg Dimensions 130x330x450mm Tapping diameter 18mm Applicable Drill Bit Taper Shank Twist Drill √ Straight Shank Twist Drill √ Countersink Drill √ Hole Cutter HSS √ Hole Cutter TCT √ Step Drill Bit √ Screw Tap(only RE) √ Features Overload protection √ Integrated cable routing √ Package Inclusions Magnetic drilling machine 1 pc Mesh belt 1 pc Geared drill chuck 1 pc Drill chuck key 1 pc Operating manual 1 pc Warranty Certificate 1 pc Sutible adapter Morse taper sleeve √ Drill chuck arbor √ Drill chuck √ Morse Taper Shank Arbor of Annular Cutter √
Customer Reviews
R****D2022-12-14
This mag drill is is heavy, but the electromagnet holds very well. I bought this to drill thru frame rails to install an old plow on an old truck. It worked great! My only negative thought is that it runs a little on the fast side for drilling steel, but it works great with adequate drilling/cutting oil and a little patience when drilling with larger bits.
